NeRF

Here's a detailed description of the model's architecture and hyperparameters:

Neural Field Model Architecture

Input:

2D coordinate (x, y) ∈ [0,1]²

Positional Encoding:

Takes a coordinate p and maps it to a higher dimensional space using:

\[\gamma(p) = (sin(2^0\pi p), cos(2^0\pi p), ..., sin(2^{L-1}\pi p), cos(2^{L-1}\pi p))\]

• Input dimension for each coordinate increases from 1 to 2L
• Total encoding dimension = 2 + 22L (original coordinates + encoded dimensions)
• L is the maximum frequency used in encoding

MLP Architecture:

CopyInput (2 + 2*2*L dims) → Linear(256) → ReLU →
Linear(256) → ReLU →
Linear(256) → ReLU →
Linear(256) → ReLU →
Linear(3) → Sigmoid → Output (RGB)

Output:

3-dimensional RGB color values ∈ [0,1]³
Sigmoid activation ensures valid color range

Hyperparameters:

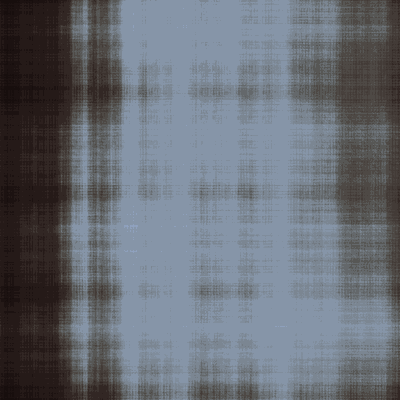

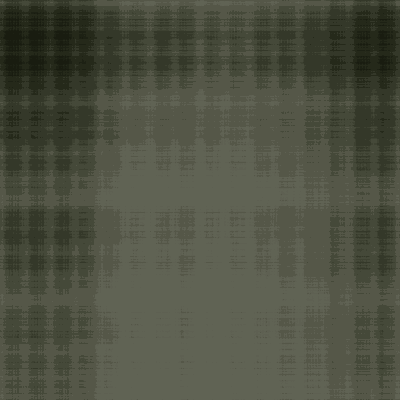

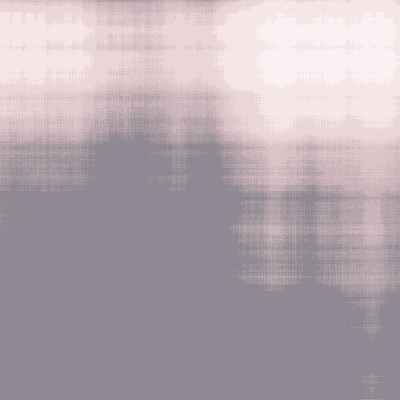

Base Configuration (Fox, Mama, Papa photos):

• Frequency encoding parameter L = 10 (resulting in 42-dimensional encoded input)
• Learning rate = 0.01
• Batch size = 10,000
• Number of epochs = 300
• Optimizer: Adam
• Loss function: Mean Squared Error (MSE)

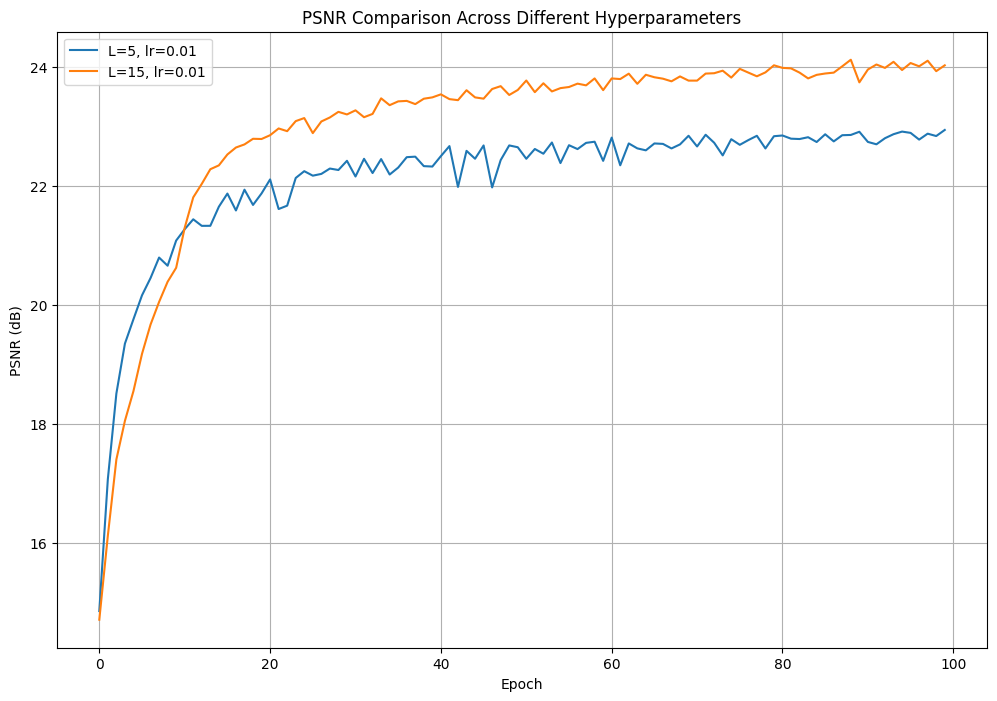

Francesco Photo Experiments:

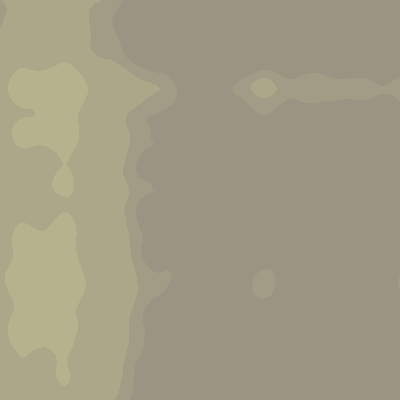

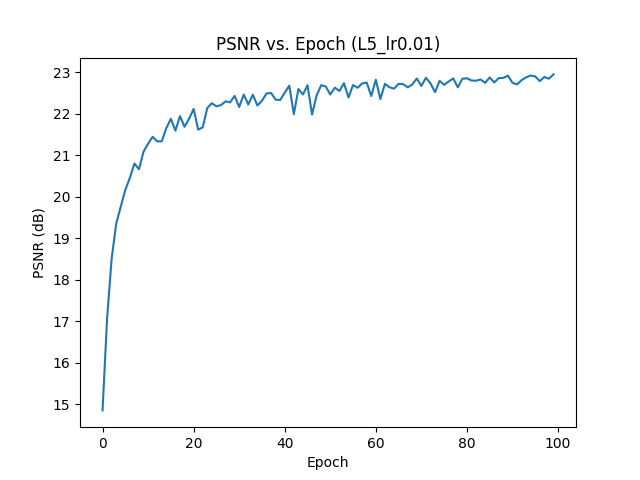

Configuration 1:

• L = 5 (22-dimensional encoded input)
• Learning rate = 0.01
• Number of epochs = 100

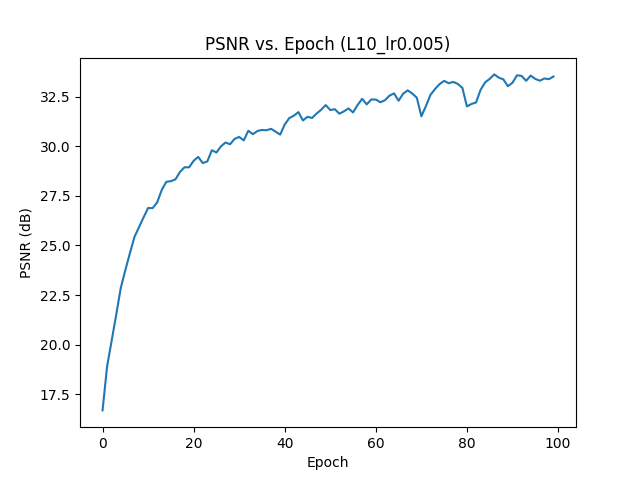

Configuration 2:

• L = 10 (42-dimensional encoded input)
• Learning rate = 0.005
• Number of epochs = 100

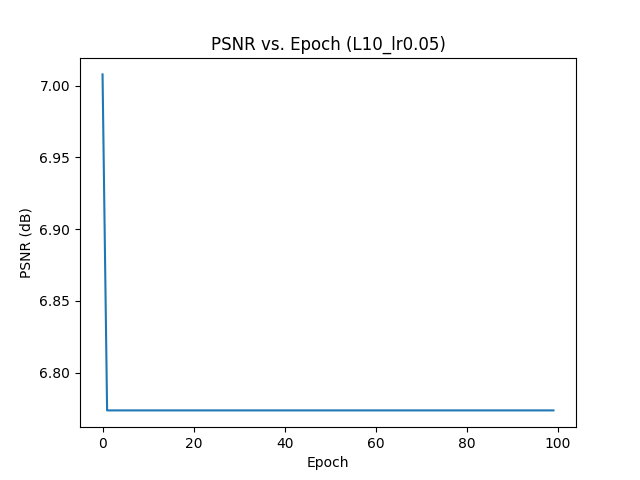

Configuration 3:

• L = 10 (42-dimensional encoded input)
• Learning rate = 0.05
• Number of epochs = 100

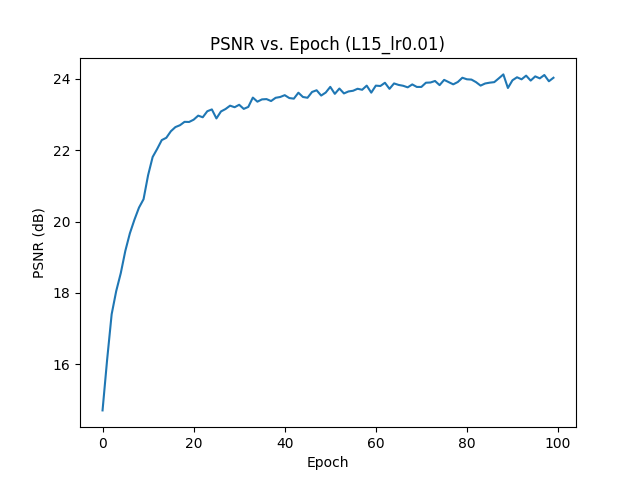

Configuration 4:

• L = 15 (62-dimensional encoded input)
• Learning rate = 0.01
• Number of epochs = 100

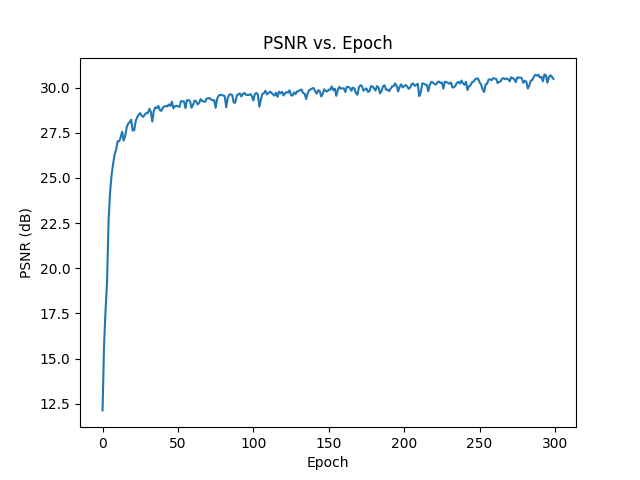

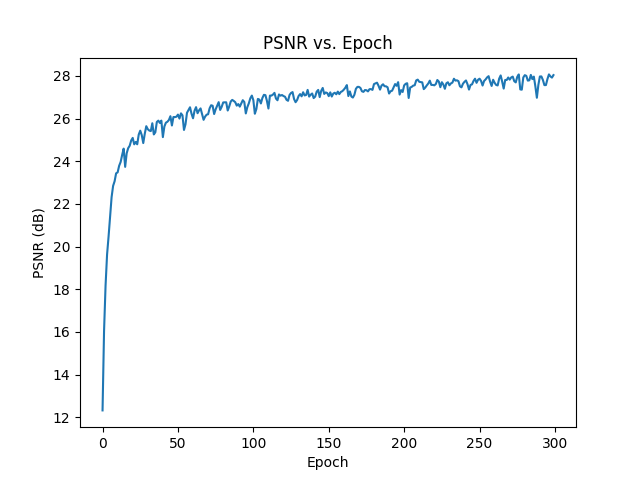

PSNR Metric:

Peak Signal-to-Noise Ratio calculation:
\[PSNR = 10 \cdot \log_{10}(1/MSE)\]
Used to evaluate reconstruction quality

The model learns a continuous function mapping from 2D coordinates to RGB colors, effectively representing the image as a neural field. The positional encoding helps the network learn high-frequency details, while the MLP architecture provides the capacity to learn complex spatial patterns.

Let's explore how NeRF transforms a collection of 2D images into a continuous 3D neural representation:

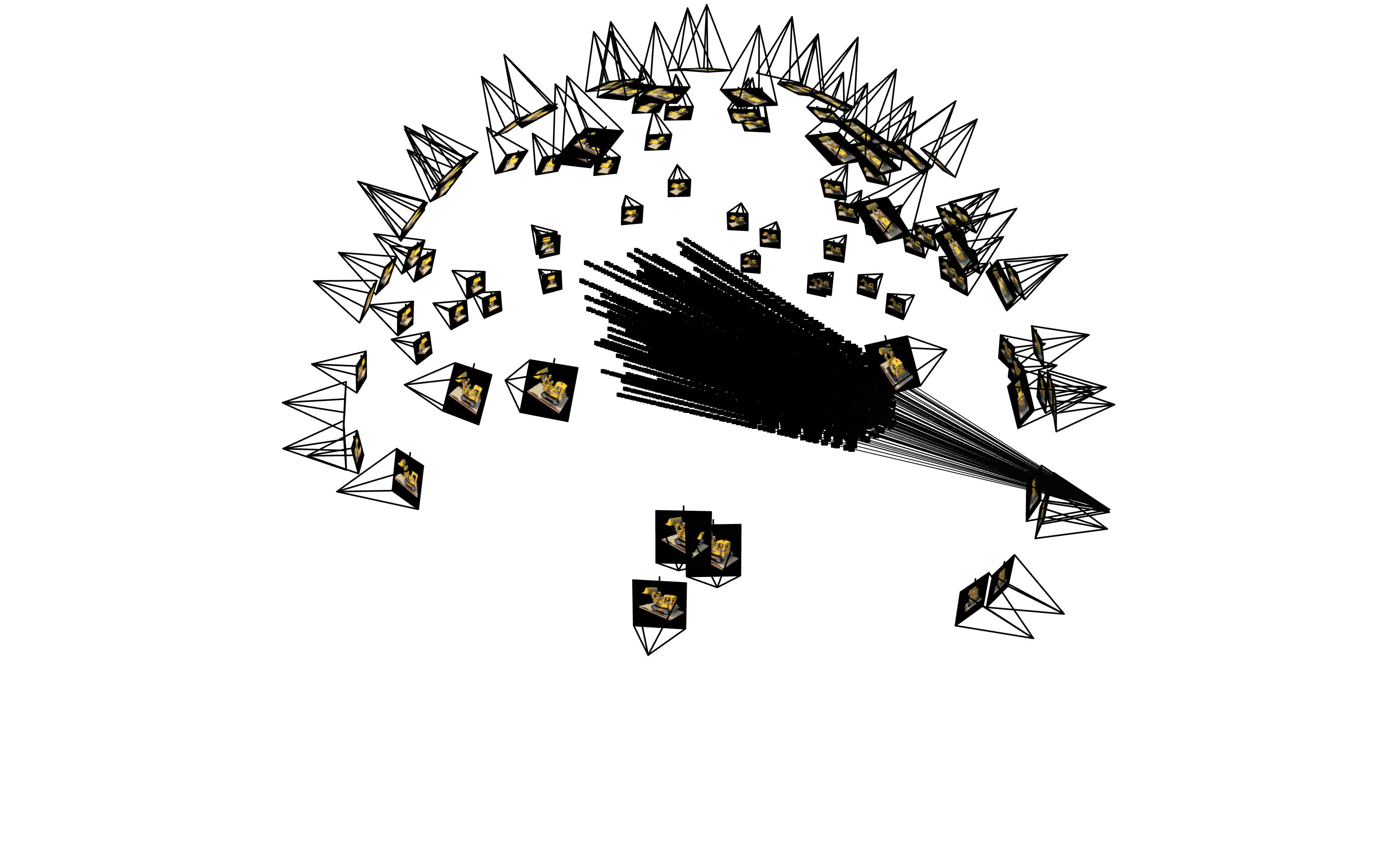

Ray Generation: Creating Our 3D Vision

Just like how our eyes perceive the world through light rays, NeRF starts by simulating this process:

Camera Space to World Space:

\[X_w = [R|t] X_c\]

We first transform the camera's view into world coordinates, where [R|t] represents how the camera is positioned and oriented in the world.

From Pixels to Camera Rays:

\[x_c = K^{-1} \begin{bmatrix} u \\ v \\ 1 \end{bmatrix} s\]

Each pixel is converted into a ray in the camera's view, where K captures the camera's internal properties.

Creating View Rays:

• Ray Origin: \[r_o = -R^{-1}t\]
• Ray Direction: \[r_d = normalize(X_w - r_o)\]

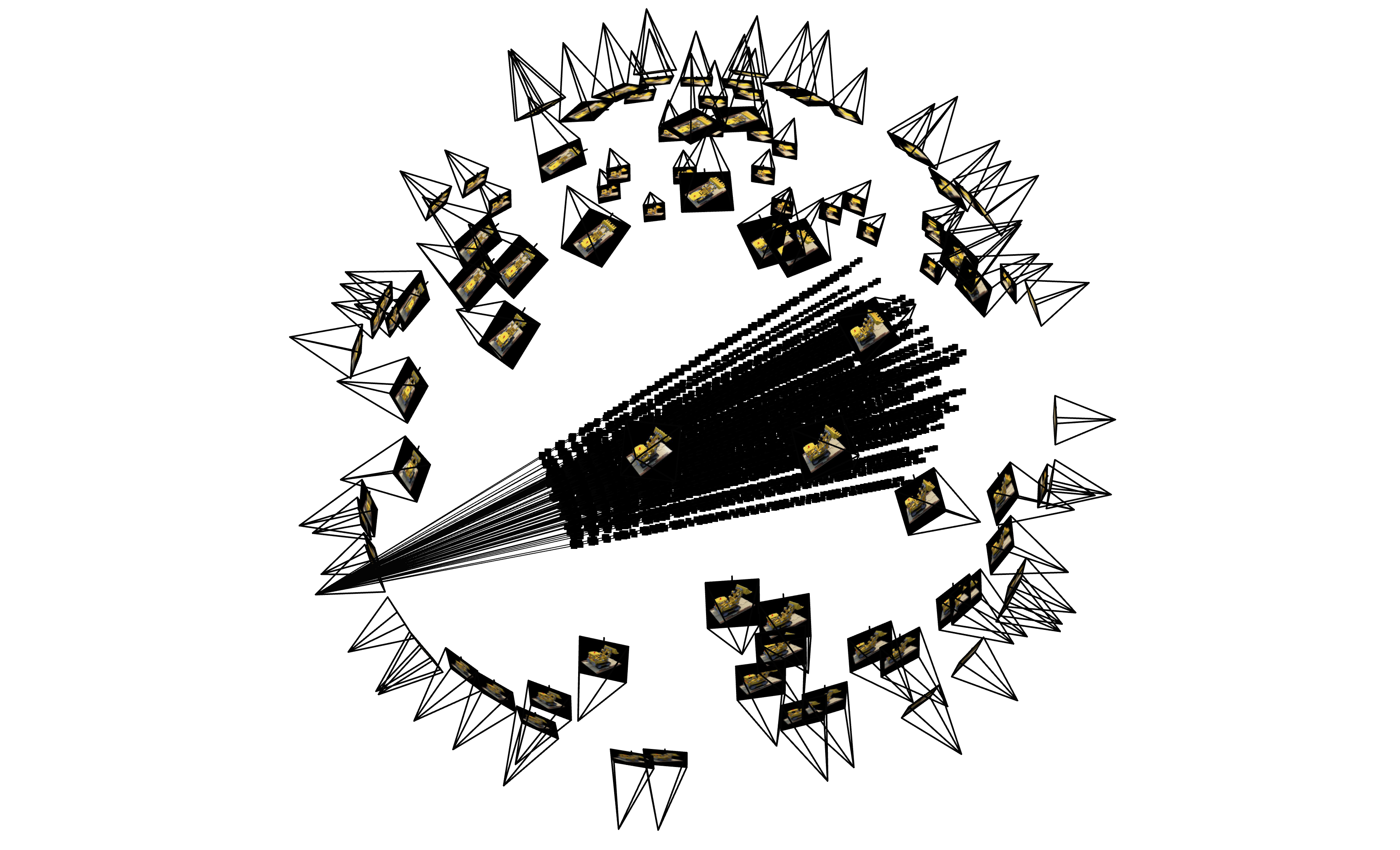

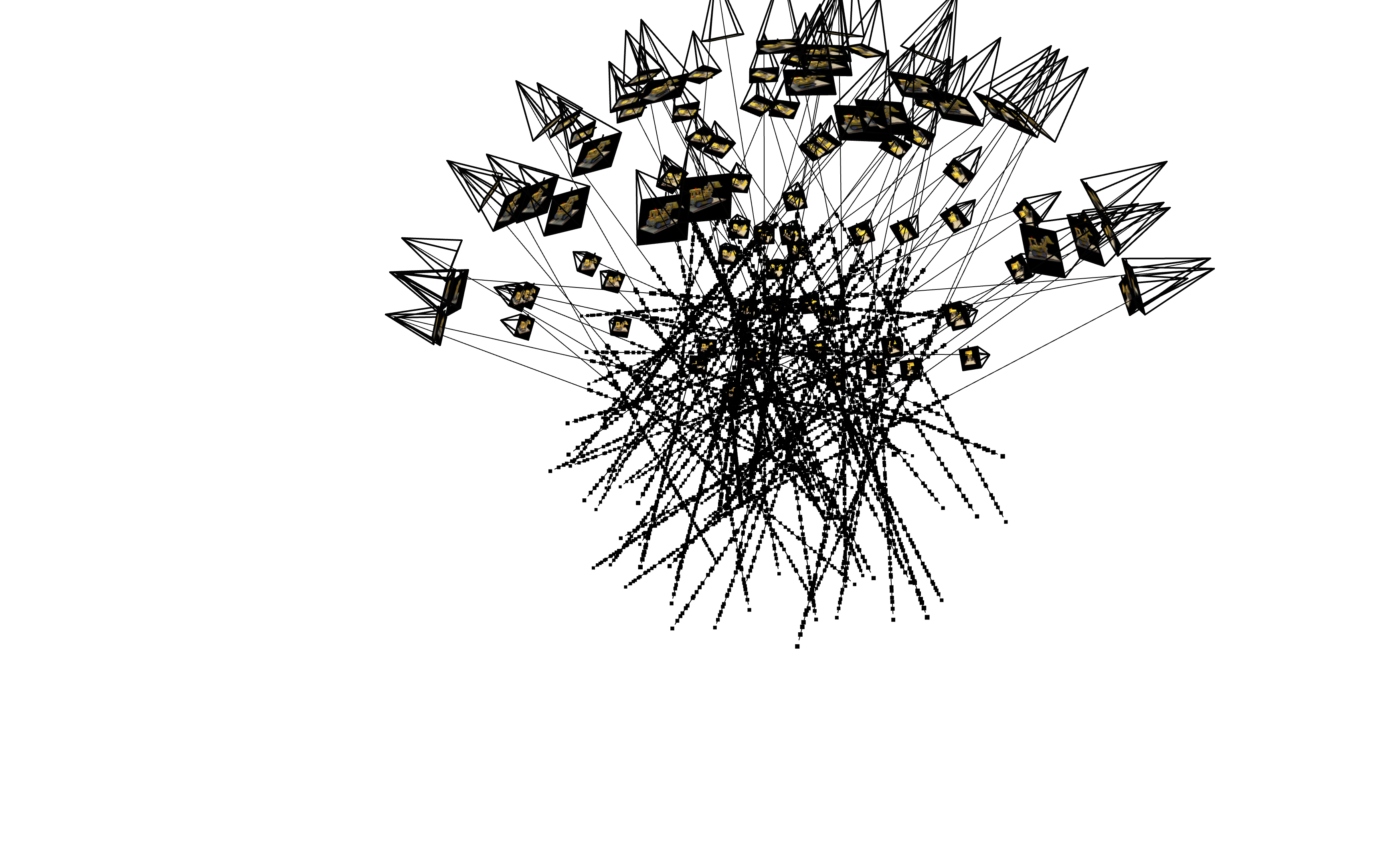

Sampling: Exploring the 3D Space

With our rays defined, we now sample points along them to explore the 3D space:

Strategic Ray Selection:

• We collect rays from all training images
• Each ray carries information about its origin, direction, and the true color it should see
• During training, we randomly sample these rays to learn different viewpoints

Point Sampling Strategy:

Along each ray, we sample points to understand what the ray encounters:

\[x = r_o + r_d \cdot t\]

where t spans from near (2.0) to far (6.0), giving us a comprehensive view of the space

Neural Network: Learning the Scene

The heart of NeRF is its neural network that learns to represent the 3D scene:

Input Processing:

• Location in 3D space (x,y,z)
• Viewing angle (θ,φ)
• Enhanced through positional encoding:

\[\gamma(p) = (sin(2^0\pi p), cos(2^0\pi p), ..., sin(2^{L-1}\pi p), cos(2^{L-1}\pi p))\]

Network Architecture:

• Deep network with 8 layers processing spatial information
• Skip connections to maintain fine spatial details
• View direction influences final color prediction
• Produces color (RGB) and density (σ) for each point

Volume Rendering: Creating the Final Image

Finally, we combine all points along each ray to produce the final color:

\[C(r) = \sum_{i=1}^N T_i(1 - exp(-\sigma_i\delta_i))c_i\]

where:

• \[T_i = exp(-\sum_{j=1}^{i-1} \sigma_j\delta_j)\] represents how much previous points block the view
• σᵢ tells us how solid each point is
• cᵢ is the color at each point

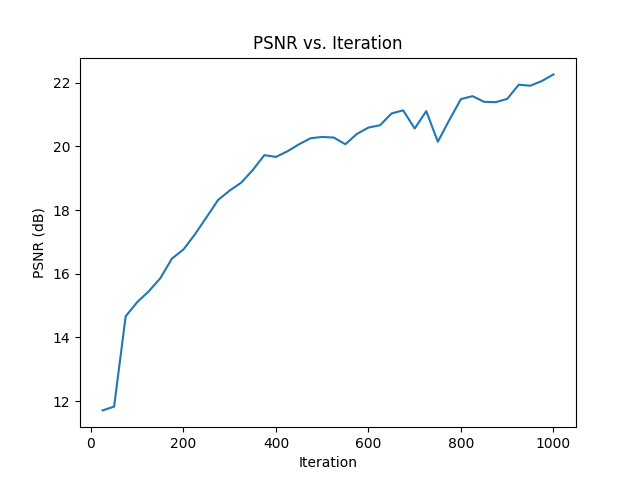

Training Process:

• Process 10,000 rays in each training batch
• Use Adam optimizer with 5e-4 learning rate

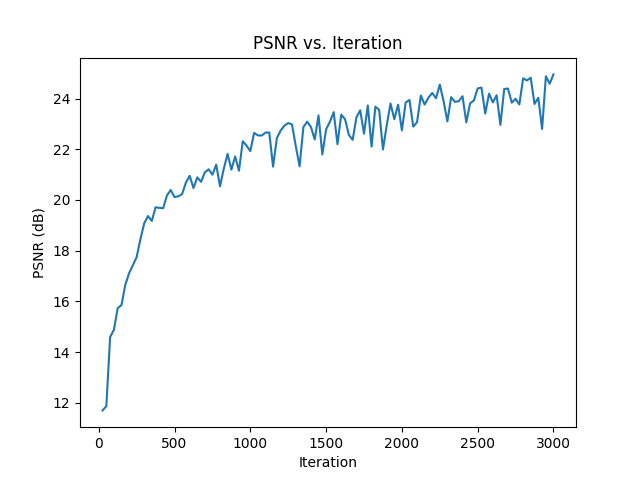

• Achieve high-quality results (~23 PSNR) after 1000 steps

Through this process, NeRF learns to transform a set of 2D images into a rich 3D representation that can generate novel views of the scene from any angle.
