Project 2: Fun with Filters and Frequencies

Introduction

In this project, we explore various filtering techniques and frequency domain manipulations in images. We implement edge detection using finite difference operators, image sharpening, hybrid images, and multiresolution blending.

Part 1: Fun with Filters

Part 1.1: Finite Difference Operator

Computation: Gradient Magnitude Computation

In this part, we use finite difference operators for edge detection. We apply the difference operator to the image to obtain gradients in the x and y directions. Specifically, we convolve the original image with the kernels \( D_x = [1, -1] \) and \( D_y = [1, -1]^T \). We then compute the gradient magnitude by combining the gradients in x and y. Finally, we binarize the gradient magnitude image to produce a binary edge map.

The gradient magnitude is used to identify the edges within an image by measuring the intensity of changes between neighboring pixels. This process involves calculating the gradients (changes in pixel values) in both the horizontal (x) and vertical (y) directions.

1. Compute Gradients: The image is convolved with kernels, such as Dx = [1, -1] for the x direction and Dy = [1, -1]T for the y direction.

2. Gradient Magnitude Calculation: The gradient magnitude at each pixel is then computed using:

Gradient Magnitude = √((Gx)² + (Gy)²)

where Gx and Gy are the gradients in the x and y directions, respectively.

3. Result: The result is an image where higher gradient magnitudes correspond to strong edges or transitions between regions of different intensity. Optionally, binarization can be applied to emphasize these edges.

This method highlights boundaries and structural changes within the image, making it a crucial step in edge detection and image analysis.

Original Image

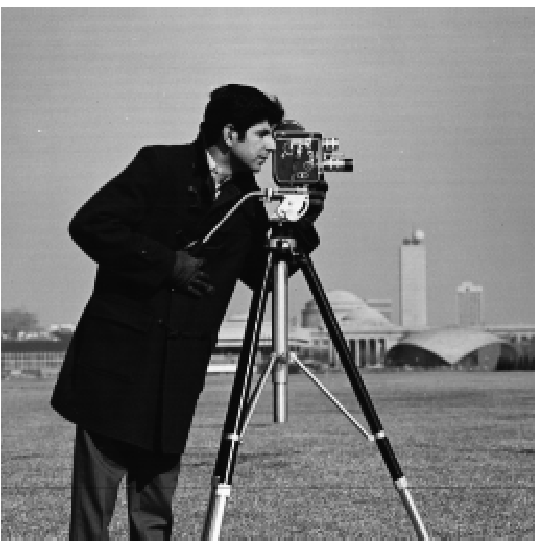

Figure 1: Original Image (Cameraman)

Gradient in X

Figure 2: Gradient in X Direction

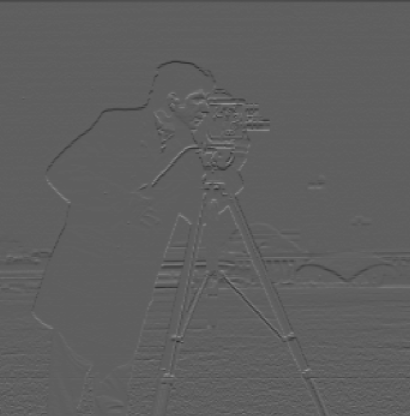

Gradient in Y

Figure 3: Gradient in Y Direction

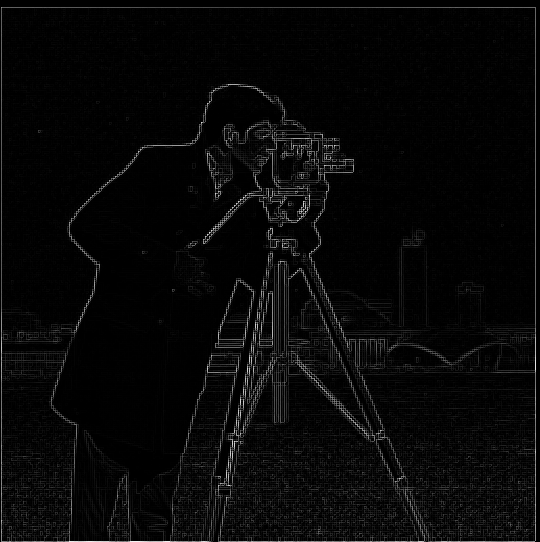

Gradient Magnitude

Figure 4: Gradient Magnitude

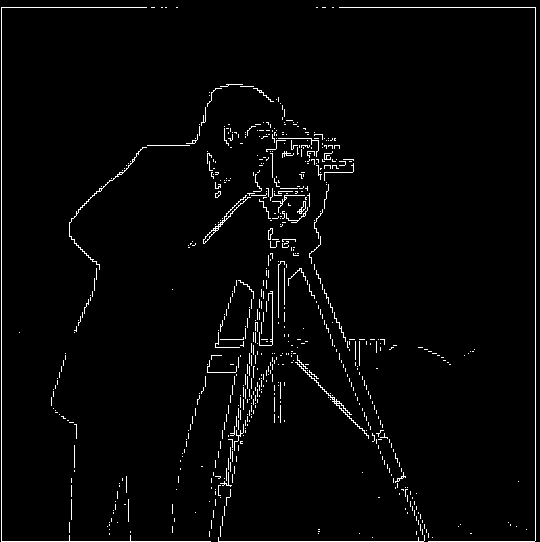

Binarized Edge Image

Figure 5: Binarized Edge Image

Part 1.2: Derivative of Gaussian (DoG) Filter

Computation: Derivative of Gaussian (DoG) Filter

To reduce noise and obtain smoother edges, we apply a Gaussian blur to the image before computing the gradients. We then compute the gradient magnitude and compare it with the one obtained using the Derivative of Gaussian (DoG) filters. The DoG filters are obtained by convolving the Gaussian kernel with the finite difference operators. This allows us to perform smoothing and differentiation in one step.

To reduce noise from edge detection, we apply a Gaussian blur to the original image before computing gradients. By convolving the Gaussian filter with partial derivative operators, we obtain DoG filters.

DoGx = G * Dx, DoGy = G * Dy

Applying these DoG filters smooths the image and then calculates the gradient in one step. The result is a cleaner edge detection compared to using only the difference operator.

Original Image

Figure 6: Original Image (Cameraman)

Blurred Image

Figure 7: Image after Gaussian Blur

DoG Gradient in Y

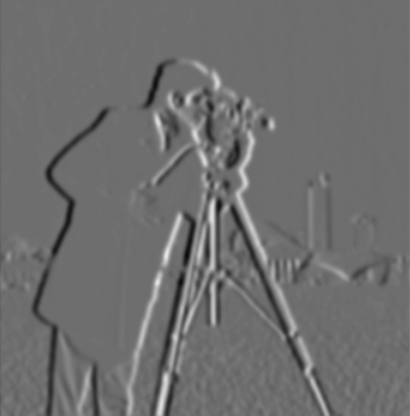

Figure 8: Gradient in Y using DoG

Gradient Magnitude after Blurring

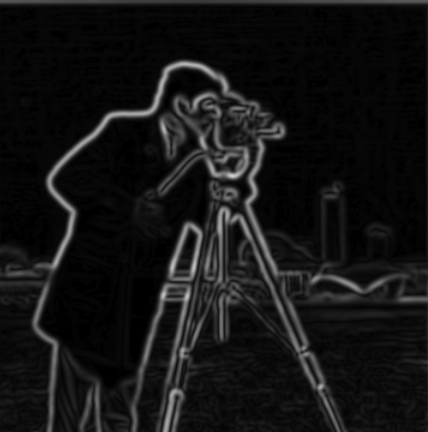

Figure 9: Gradient Magnitude after Blurring

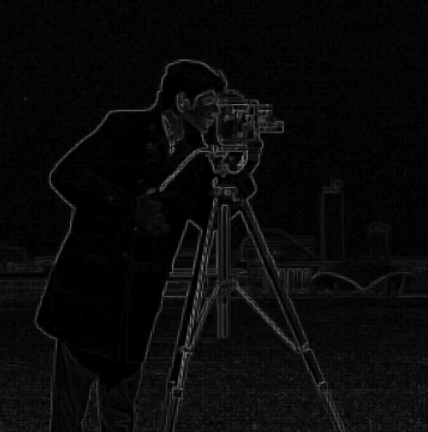

Gradient Magnitude using DoG

Figure 10: Gradient Magnitude using DoG

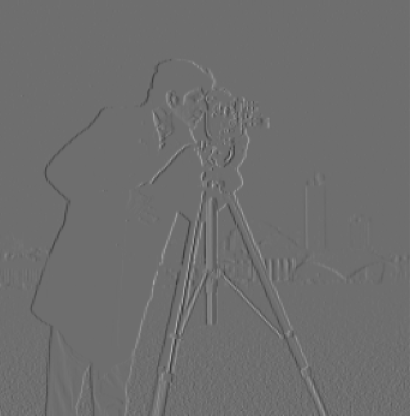

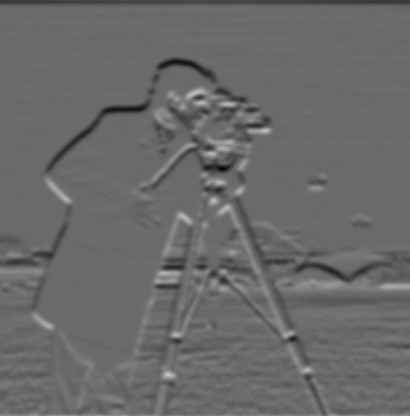

DoG Gradient in X

Figure 11: Gradient in X using DoG

Answer Question:The main difference between 1.1 and 1.2 is the thickness and clarity of the edges. The images with smoothing (DoG filter) show much clearer and more defined edges, resulting in thicker, more pronounced white lines. Additionally, the DoG filter produces less noise with smoother gradients and cleaner edges, where significant boundaries are more distinct and fewer spurious edges appear.

When we calculate the difference between the blurred gradient and the DoG gradient, the result is 0, confirming that both methods produce the same outcome.

Part 2: Fun with Frequencies!

Part 2.1 Image Sharpening

Computation: Image Sharpening

We sharpen images by enhancing their high-frequency components. We subtract a blurred version of the image from the original to obtain the high frequencies. We then scale these high frequencies by a factor (alpha) and add them back to the original image. This unsharp masking technique enhances edges and details.

Image sharpening enhances high-frequency components. A Gaussian blur is applied to extract the low-frequency content, which is then subtracted from the original image to obtain high frequencies.

Sharpened Image = Original + α * (Original - Blurred)

The parameter α controls the intensity of sharpening. The sharpened image emphasizes edges and details more clearly.

Sharp Rock from Patagonia, Chile

Original Rock Image

Figure 12: Original Rock Image

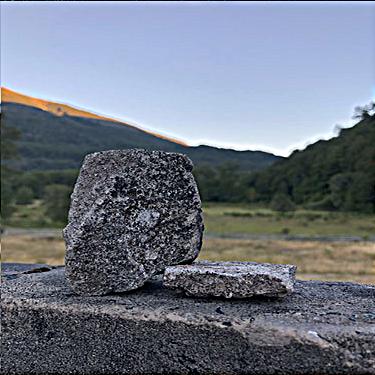

Sharpened Rock Image Alpha=1.2

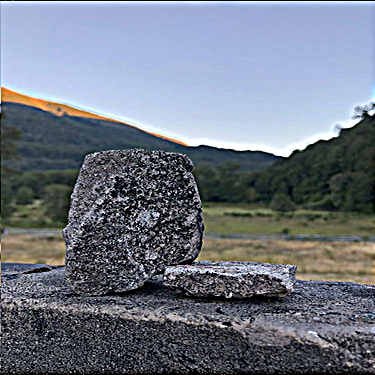

Figure 13: Sharpened Rock Image (Alpha = 1.2)

Sharpened Rock Image Alpha=2

Figure 14: Sharpened Rock Image (Alpha = 2)

Sequential Sharpening

Sharpened Image Alpha=1

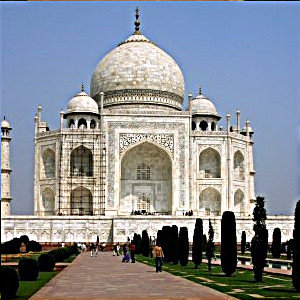

Figure 15: Sharpened Image (Alpha = 1)

Sharpened Image Alpha=2

Figure 16: Sharpened Image (Alpha = 2)

Sharpened Image Alpha=3

Figure 17: Sharpened Image (Alpha = 3)

Blur and Sharpening of Pineapple Image

This section demonstrates blurring the original pineapple image and then applying different levels of sharpening. The original image is blurred to reduce detail, and then sharpening is applied incrementally to enhance the edges and restore clarity.

Original Pineapple Image

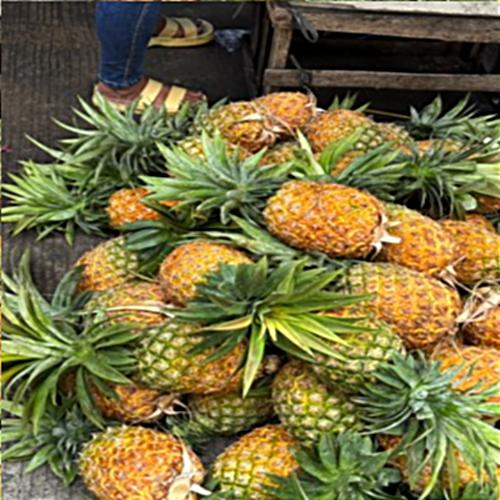

Figure 18: Original Pineapple Image

Blurred Pineapple Image

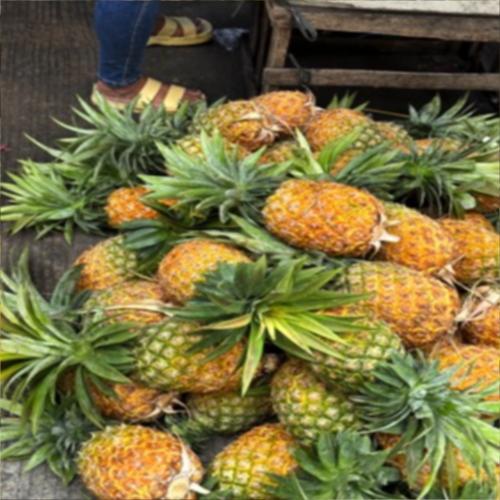

Figure 19: Blurred Pineapple Image

Sharpened Pineapple Image (Level 1)

Figure 20: Sharpened Pineapple Image (alpha = 1)

Sharpened Pineapple Image (alpha = 2)

Figure 21: Sharpened Pineapple Image (alpha = 2)

Sharpened Pineapple Image (alpha = 3)

Figure 22: Sharpened Pineapple Image (alpha = 3)

Sharpened Image Alpha=5

Figure 23: Sharpened Image (Alpha = 5)

Sharpened Image Alpha=10

Figure 24: Sharpened Image (Alpha = 10)

Blur and Sharpening

This section demonstrates the process of blurring an image and then sharpening it. The original image is first blurred, losing some details, and then sharpened to enhance the edges and restore clarity.

In this section, I took a sharp image of a cathedral, blurred it, and then applied the unsharp masking technique to sharpen it again. Although sharpening an already sharp image after blurring can help restore some details, the final result is often not as good as the original due to the loss of finer details during blurring.

Blur and Sharpening "Catedrale in Sicilia, Italia"

Original Cathedral Image

Figure 25: Original Sharp Image (Cathedral)

Blurred Cathedral Image

Figure 26: Blurred Cathedral Image

Sharpened Cathedral Image (Alpha = 2)

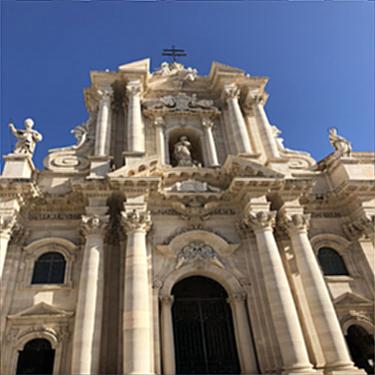

Figure 27: Resharpened Cathedral Image (Alpha = 2)

Blur and Sharpening of Curacao Image

Original Curacao Image

Figure 28: Original Curacao Image

Blurred Curacao Image

Figure 29: Blurred Curacao Image

Sharpened Curacao Image

Figure 30: Sharpened Curacao Image

Part 2.2 Hybrid Images

Computation: Hybrid Images

Hybrid images are created by combining the low-frequency content of one image with the high-frequency content of another. When viewed up close, the high-frequency image dominates, and when viewed from afar, the low-frequency image is more apparent. We experimented with grayscale and color images, switching the roles of the cat and human images.

Hybrid images are created by combining the high-frequency content of one image with the low-frequency content of another. When viewed up close, the high frequencies dominate, while from afar, the low frequencies are more visible.

The process involves low-pass filtering one image and high-pass filtering another, and then adding them together to form the hybrid image.

Original Image of Francesco

Figure 31: Original Image of Francesco

Original Image of Luca

Figure 32: Original Image of Luca

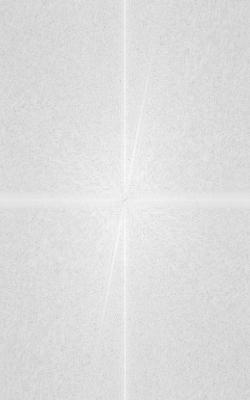

Fourier Transform of Low-Pass Luca (Grayscale)

Figure 33: Fourier Transform of Low-Pass Luca (Grayscale)

Fourier Transform of High-Pass Francesco (Grayscale)

Figure 34: Fourier Transform of High-Pass Francesco (Grayscale)

Hybrid Image of Francesco and Luca

Figure 35: Hybrid Image of Francesco and Luca

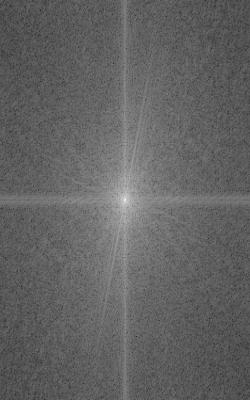

Fourier Transform of Francesco

Figure 36: Fourier Transform of Francesco

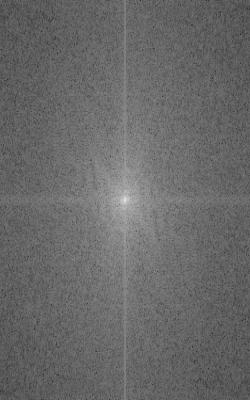

Fourier Transform of Luca

Figure 37: Fourier Transform of Luca

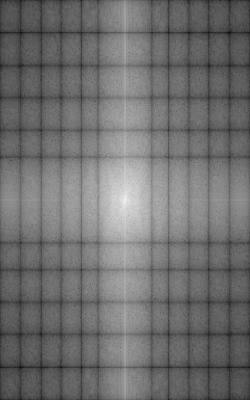

Fourier Transform of Low-Pass Francesco

Figure 38: Fourier Transform of Low-Pass Francesco

Fourier Transform of High-Pass Luca

Figure 39: Fourier Transform of High-Pass Luca

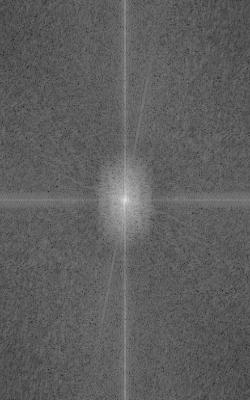

Fourier Transform of Hybrid Image

Figure 40: Fourier Transform of Hybrid Image (Francesco and Luca)

Cat as Low Frequency (Grayscale)

The images below were rezised only for display to use less web memory

Nutmeg Original (Grayscale)

Figure 41: Nutmeg Original Image (Grayscale)

Derek Original (Grayscale)

Figure 42: Derek Original Image (Grayscale)

Low-pass Filtered Image

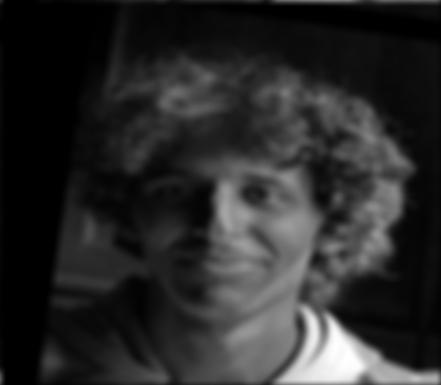

Figure 43: Low-pass Filtered Nutmeg (Low Frequency)

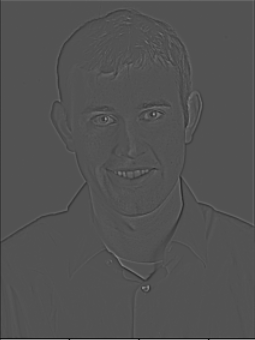

High-pass Filtered Image

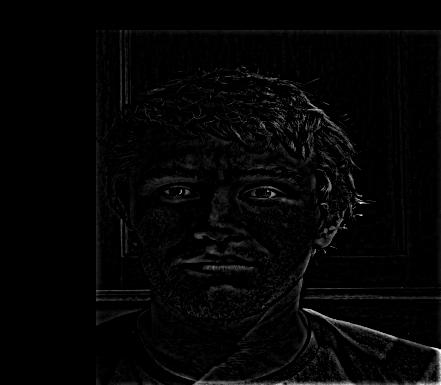

Figure 44: High-pass Filtered Derek (High Frequency)

Hybrid Image (Grayscale)

Figure 45: Hybrid Image (Cat as Low Frequency)

Fourier of Nutmeg Low Frequency

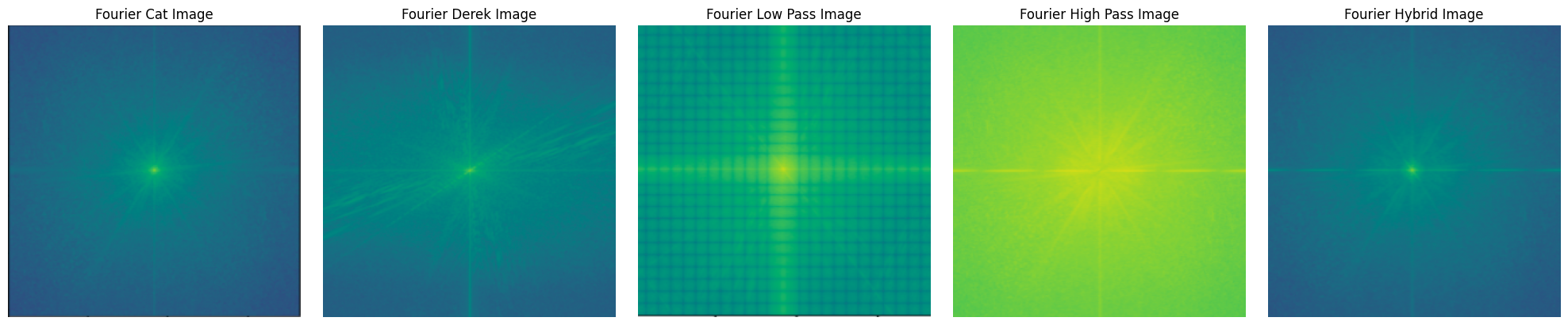

Figure 46: Fourier Transforms for my favorite image: images above

other versions of the cat by far and cat by close are below

Hybrid Image

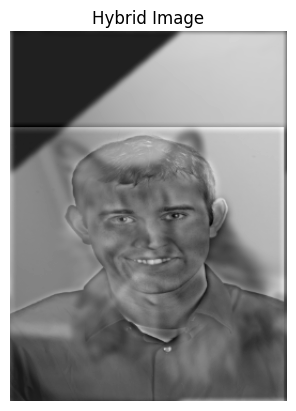

Figure 47: Hybrid Image

Hybrid Image

Figure 48: Hybrid Image

Cat as High Frequency (Color)

Nutmeg Original

Figure 49: Nutmeg Original Image

Derek Original

Figure 50: Derek Original Image

Hybrid Image (Cat as High Frequency)

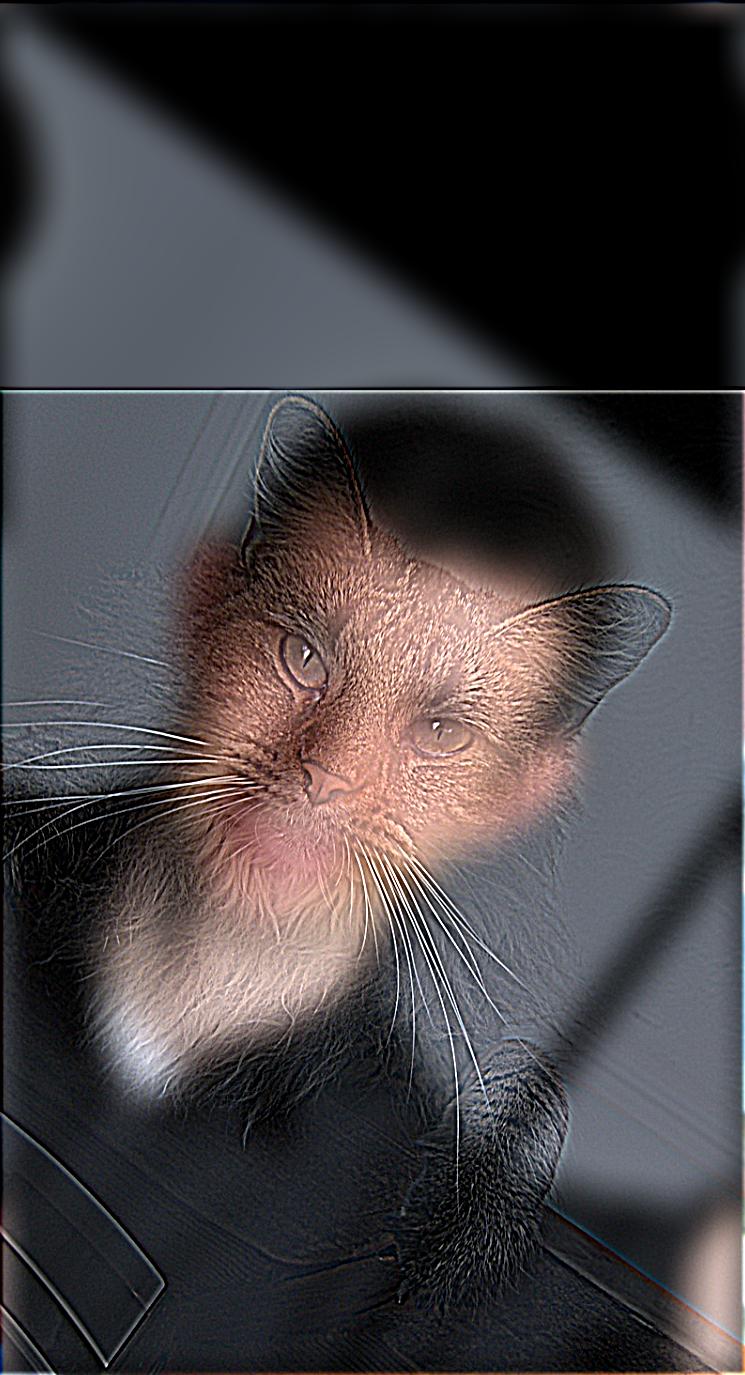

Figure 51: Hybrid Image (Cat as High Frequency)

Why Color is Better Than Grayscale for Hybrid Images

Color images often produce better hybrid results than grayscale because color channels add more information to distinguish between the high and low frequencies of the images. This additional detail enhances the effect of the hybrid, making the two combined images more recognizable at different viewing distances.

Other hybrid images

In this section, I created hybrid images using pictures of myself and my friend. When you view the images up close, you can see one image more clearly, but when you zoom out, another image starts to dominate. You need to zoom in and out quite a bit to notice the effect, but it becomes apparent as you change the viewing distance.

The smile its hard to percieve in both of the figures. For figure 54/55 th right we see Vanessa at high frequencies and francesco at low frequencies

Original Image of Francesco (Grayscale)

Figure 52: Original Image of Francesco (Grayscale)

Original Image of Vanessa (Grayscale)

Figure 53: Original Image of Vanessa (Grayscale)

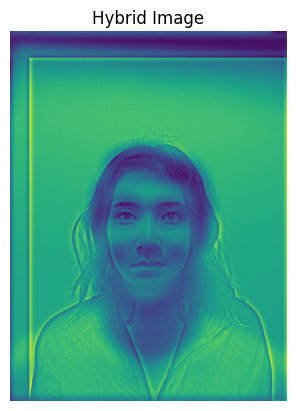

Hybrid Image of Francesco and Vanessa (Grayscale)

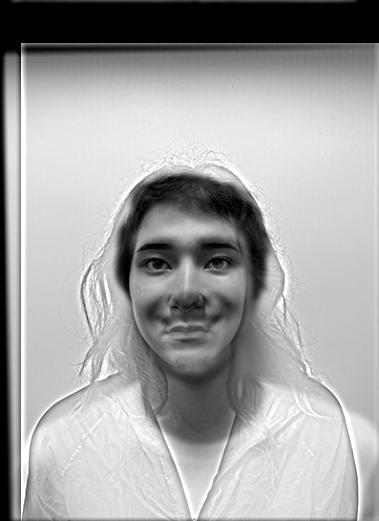

Figure 54: Hybrid Image of Francesco and Vanessa (Grayscale)

Hybrid Image of Francesco and Vanessa (Grayscale)

Figure 55: Hybrid Image of Francesco and Vanessa (Grayscale) with different sigma, raw image AND DIFFERENT PERCEPTION

Filtered Image of Francesco (Low Frequency, Color)

Figure 57: Low-pass Filtered Francesco (Low Frequency, Color)

Filtered Image of Vanessa (High Frequency, Color)

Figure 58: High-pass Filtered Vanessa (High Frequency, Color)

Hybrid Image of Francesco and Vanessa (Color)

Figure 59: Hybrid Image of Francesco and Vanessa (Color)

In this section, I created hybrid images using two different expressions of Mufasa. The first image shows Mufasa smiling, while the second one captures him screaming. The hybrid image combines these two expressions, where you can see the smile up close, but the scream becomes more dominant as you zoom out.

Here we can see a fail, the reason is that the images have a very different shape, and the tones are also severely different

Mufasa Smiling

Figure 60: Original Image of Mufasa Smiling

Mufasa Screaming

Figure 61: Original Image of Mufasa Screaming

Hybrid Image of Mufasa (Smile and Scream)

Figure 62: Hybrid Image of Mufasa (Smile and Scream)

Part 2.2: Hybrid Images with Speaker and Mug

In this section, I attempted to create a hybrid image using a speaker and a mug. Similar to the Mufasa example, this pair did not work well. The primary reason for the failure is that the two objects do not share enough structural similarity, which is essential for hybrid images to blend naturally. The distinct shapes and contours of the speaker and mug cause the hybrid to be confusing and less recognizable from different viewing distances.

Original Image of Speaker

Figure 63: Original Image of Speaker

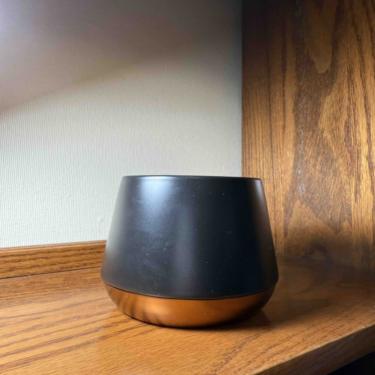

Original Image of Mug

Figure 64: Original Image of Mug

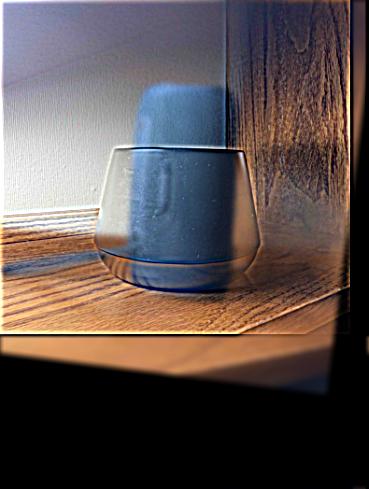

Hybrid Image of Speaker and Mug

Figure 65: Hybrid Image of Speaker and Mug

Part 2.3: Gaussian and Laplacian Stacks

Computation: Gaussian and Laplacian Stacks

We create Gaussian and Laplacian stacks for the apple and orange images. The Gaussian stack is constructed by repeatedly applying a Gaussian blur to the image. The Laplacian stack is obtained by subtracting each level of the Gaussian stack from the previous level, capturing the high-frequency details at each level.

Gaussian and Laplacian stacks represent images at different frequency bands. A Gaussian stack is created by successively applying a Gaussian filter to an image. The Laplacian stack is the difference between levels of the Gaussian stack.

These stacks are useful for multiresolution blending, where different frequency components are blended seamlessly.

Apple Original

Figure 66: Original Apple Image

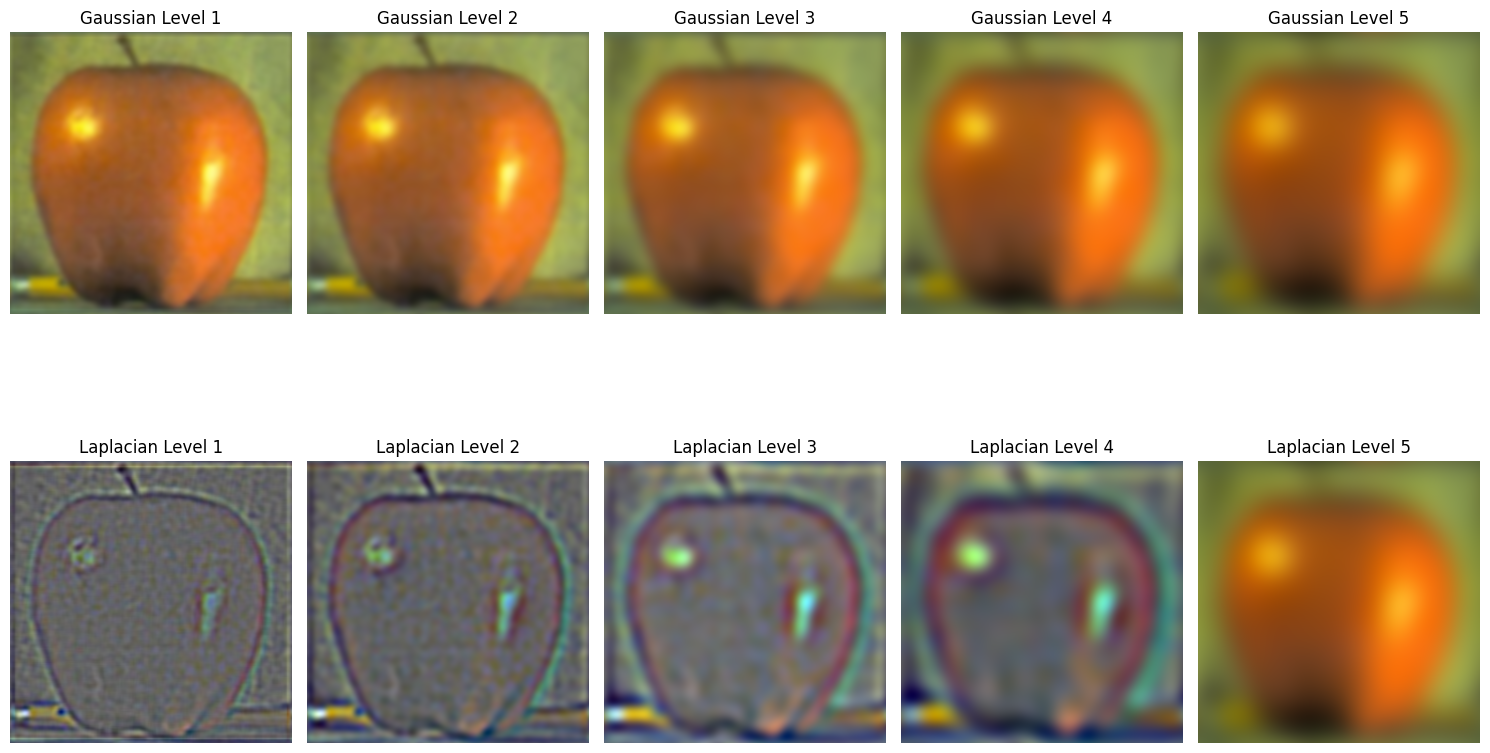

Apple Gaussian and Laplacian Stack

Figure 67: Apple Gaussian and Laplacian Stacks

Orange Original

Figure 68: Original Orange Image

Orange Gaussian and Laplacian Stack

Figure 69: Orange Gaussian and Laplacian Stacks

Part 2.4: Multiresolution Blending (Oraple)

Computation: Multiresolution Blending

Multiresolution blending uses Gaussian and Laplacian stacks to combine two images smoothly. An irregular mask is applied to control the blend, allowing for smooth transitions between images.

Each level of the Laplacian stacks of the images is blended according to the Gaussian stack of the mask, and then the results are summed to produce the final blended image.

Using the Gaussian and Laplacian stacks, we blend the apple and orange images to create the "oraple." We use a mask to define the blending region and combine the Laplacian stacks of both images according to the mask at each level. This results in a seamless blend across the images.

Blended Oraple Image

Figure 70: Blended Oraple Image

Blending Mask

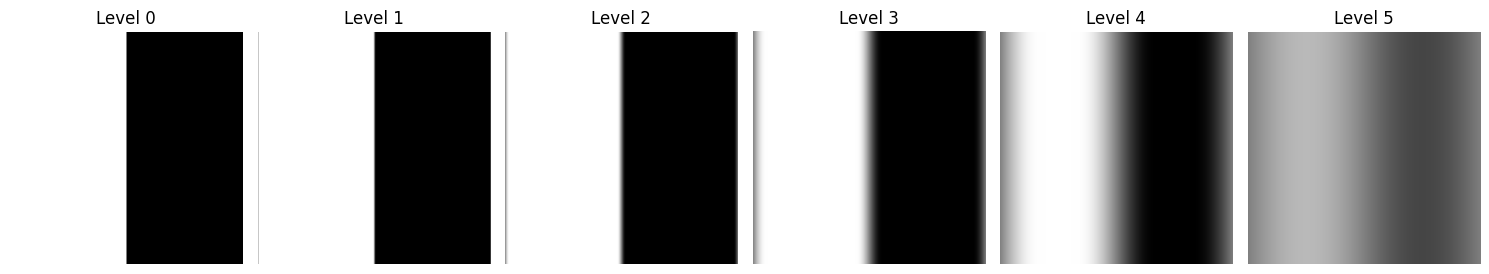

Figure 71: Blending Mask Used

Part 2.4: Multiresolution Blending with an Irregular Mask (Dog and Grass)

In this section, I blended an image of a dog with grass using an irregular mask. The mask was created in Adobe Photoshop, then binarized for precise blending. The multiresolution blending process involves several steps:

Grass Image

Figure 72: Original Image of Grass

Dog Image

Figure 73: Original Image of Dog

Irregular Mask

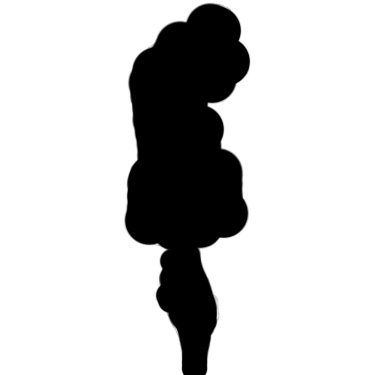

Figure 74: Binarized Mask for Blending

Blended Image of Dog and Grass

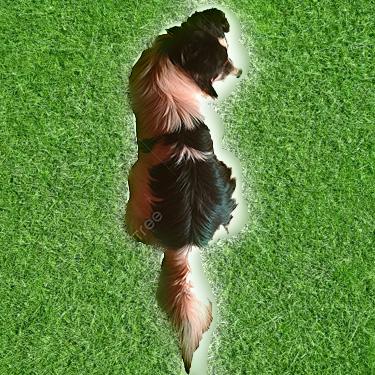

Figure 75: Final Blended Image of Dog and Grass

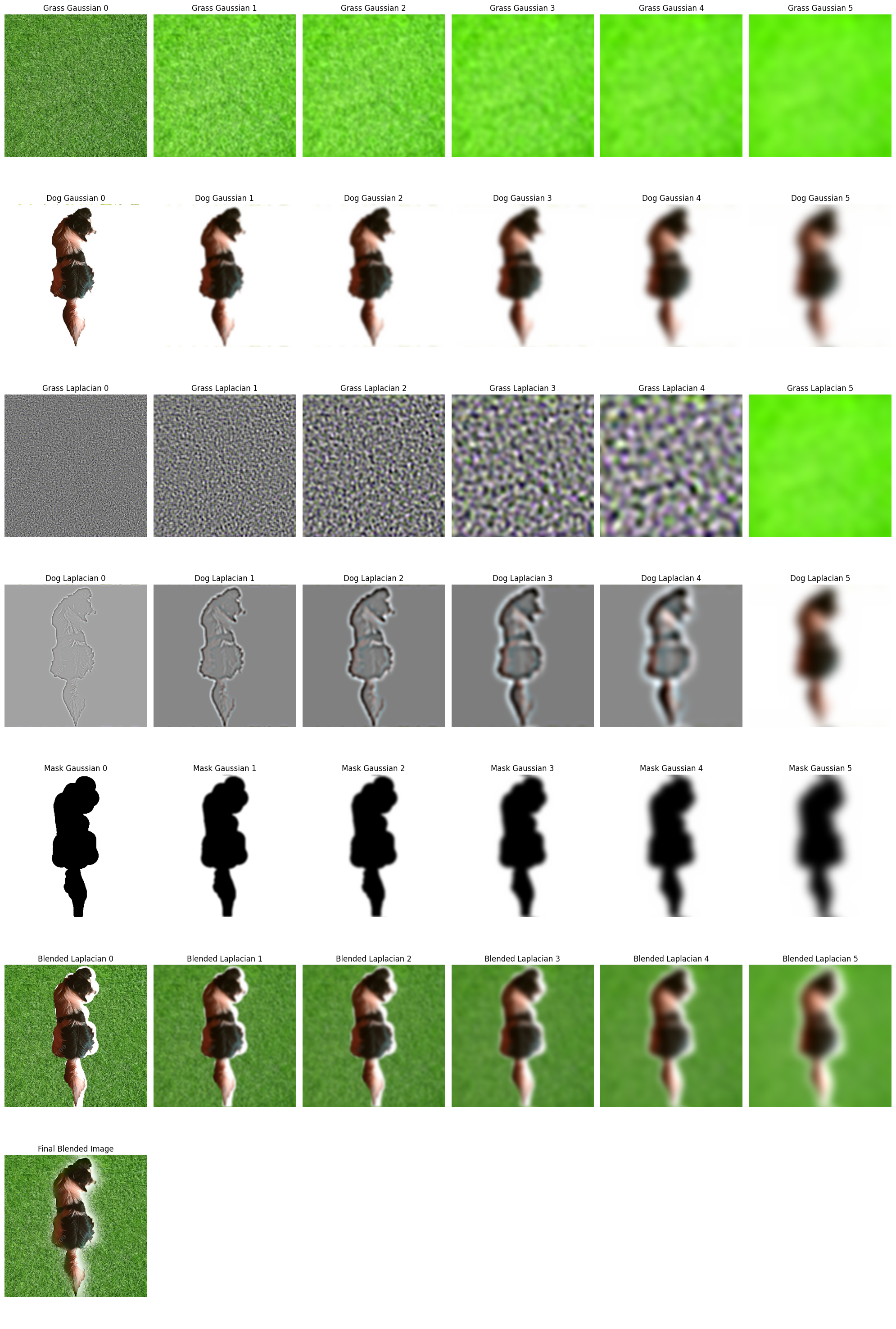

Blending Process (Pyramid Levels)

Pyramid Levels for Dog, Grass, Mask, and Blended Image

Figure 76: Laplacian, Gaussian, and Blended Pyramids for Dog, Grass, and Mask

Part 2.4: Multiresolution Blending with My Face and X Shape

In this section, I blended an image of my face with an X shape using an irregular mask. The mask was carefully designed and binarized to control the blending process.

One of the most challenging aspects of this part of the project was creating the irregular mask and ensuring that the images were perfectly aligned. Crafting the mask in Adobe Photoshop required precision to ensure smooth transitions between the two images. After creating the mask, binarizing it to ensure accurate blending at each level was essential. Another difficulty was making sure the images of my face and the X shape were well-aligned so that the multiresolution blending produced seamless results. Misalignment could have resulted in awkward blending or artifacts, which I had to carefully avoid by adjusting the positions and scaling the images during the process.

X Shape Image

Figure 77: Original Image of X Shape

My Face Image

Figure 78: Original Image of My Face

Irregular Mask for Blending

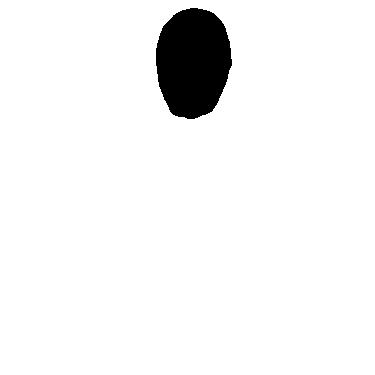

Figure 79: Binarized Mask for Blending

Blended Image of Face and X Shape

Figure 80: Final Blended Image of My Face and X Shape

Blending Process (Pyramid Levels)

Pyramid Levels for Face, X Shape, Mask, and Blended Image

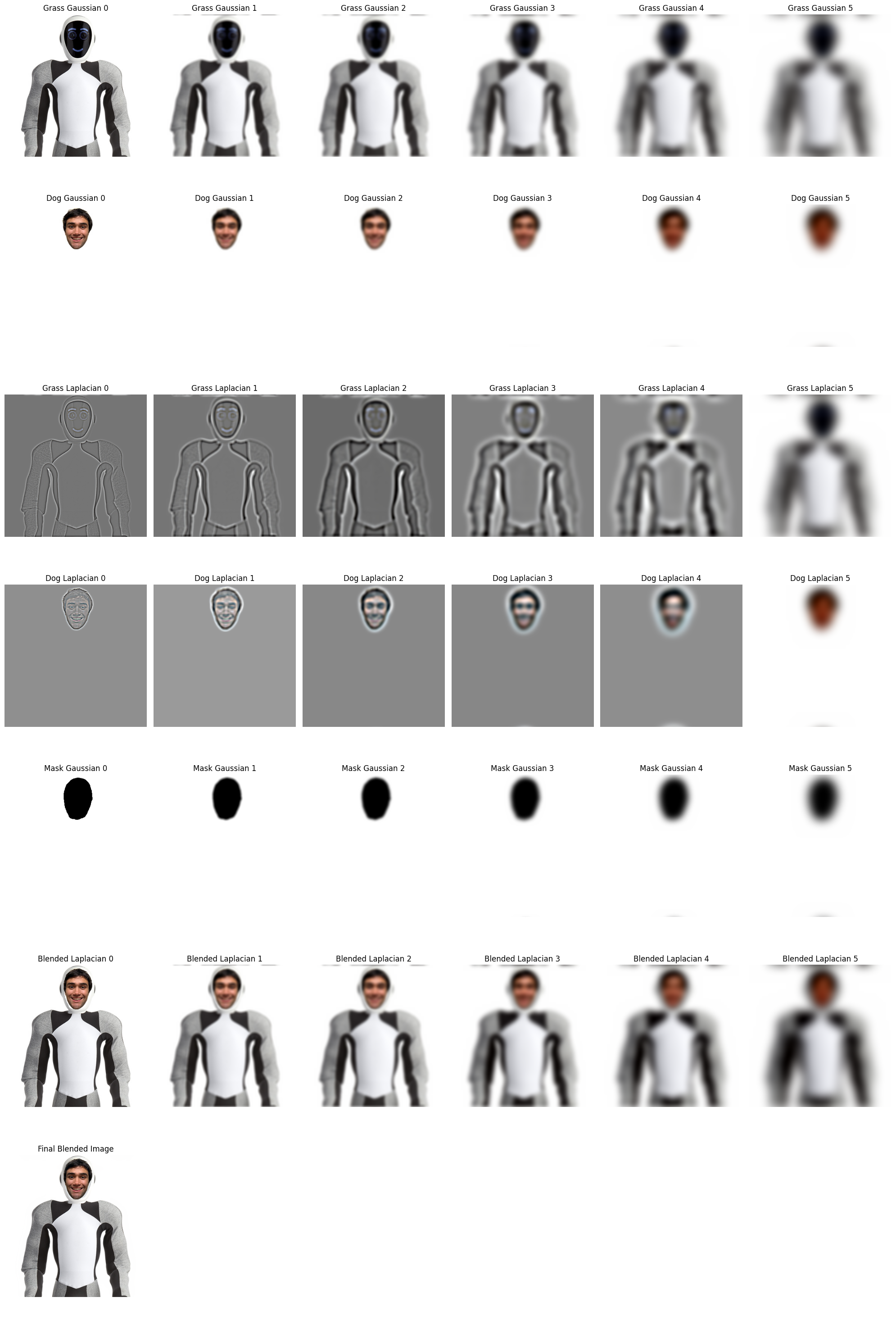

Figure 81: Laplacian, Gaussian, and Blended Pyramids for Face, X Shape, and Mask

Conclusion

Through this project, I learned how frequency domain techniques can be applied to image processing tasks such as edge detection, image sharpening, hybrid images, and blending. Understanding how to manipulate different frequency components allows for powerful image transformations and effects.
